Desktop Electronic Universal Testing Machine
The WDW-20B series testing machine consists of two systems: a computer or digital display and a test host machine. As a control system, the computer or digital display can automatically control the entire test and automatically collect experimental data through data sensors. It is mainly used for testing and researching mechanical properties such as tension, compression, and bending of various metals, non-metals, and composite materials. It has functions such as easy operation, continuously adjustable test speed, automatic shutdown when the sample is broken, digital display of test force, and peak value holding.
Description
Reviews(2)
Features
1. Adopt fully digital AC servo speed control system and servo motor as the drive system, with high speed control accuracy and stable performance.
2. Microcomputer control and data processing software automatically collects and processes test data, draws various curves and prints test reports;
3. Good humanized design makes the test operation easier, and the test operations can be automatically completed on the computer through the mouse.
4. This machine fully meets the requirements of national standards and can conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users.
5. It has good scalability and can cope with various tests of different samples by changing the fixture.
6. It has three control modes: stress, strain and displacement. The control modes can be switched randomly.
7. It has functions such as mechanical limit protection, overload protection, overcurrent protection, and leakage protection.
Specifications
| Model | WDW-5B | WDW-10B | WDW-20B | Customized on demand |
|---|---|---|---|---|
| Maximum test force | 5kN | 10kN | 20kN | 5-20kN |
| Force measurement range | 0.4%-100%FS (no binning in the whole process) | |||
| Test force indication accuracy | Better than ±1% of the indication value (precision level can reach ±0.5%) | |||
| Deformation accuracy | Better than ±1% of the indication value | |||
| Crossbeam displacement measurement (mm) | Resolution 0.001 | |||
| Deformation range | 1%-100% | |||
| Large deformation measurement range | 10-800 (optional) | |||
| Large deformation indication accuracy | Within ±1% of the indication value | |||
| Displacement resolution (n) | Resolution 0.001 | |||
| Displacement rate adjustment range | (0.001-500) mm/min can be set arbitrarily. Higher speed can be customized. | |||
| Displacement rate spatial accuracy | ≤±1% | |||
| Stretch stroke (mm) | 800 | custom made | ||
| Crossbeam moving space (mm) | 1150 | custom made | ||
| Host size (mm) | (Length × Width × Height) 640 × 330 × 1550mm | custom made | ||
| Testing machine weight (kg) | about 150 | |||
| Motor power (kw) | 1 | |||
| Testing machine auxiliary tools | Stretching aids, compression aids, bending aids and other aids (optional) | |||
| Testing machine style | small desktop | |||

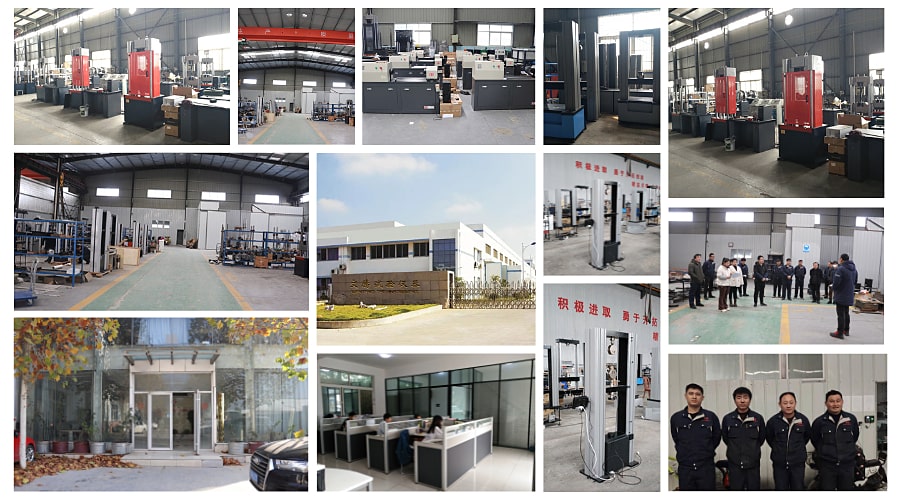

Company Profile
